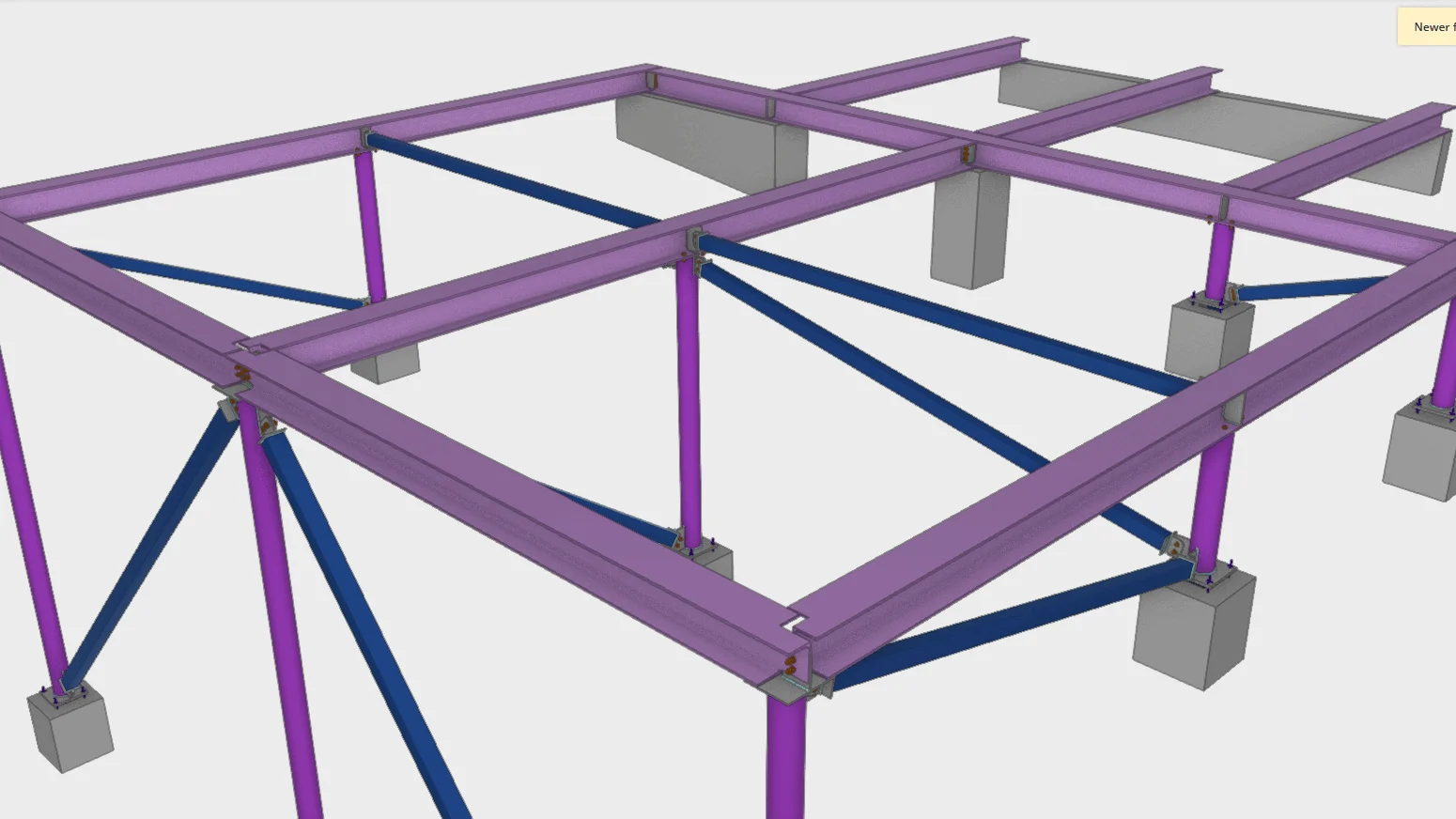

This is a two-storey private double house located in Sollentuna kommun, Sweden. It is a compact, modern semi-detached house featuring panoramic windows and an open second-floor terrace designed for evening tea gatherings. The house is situated on a hillside, so it was installed on a metal platform with diagonal bracing.
Main Part Design OĆ Responsibilities

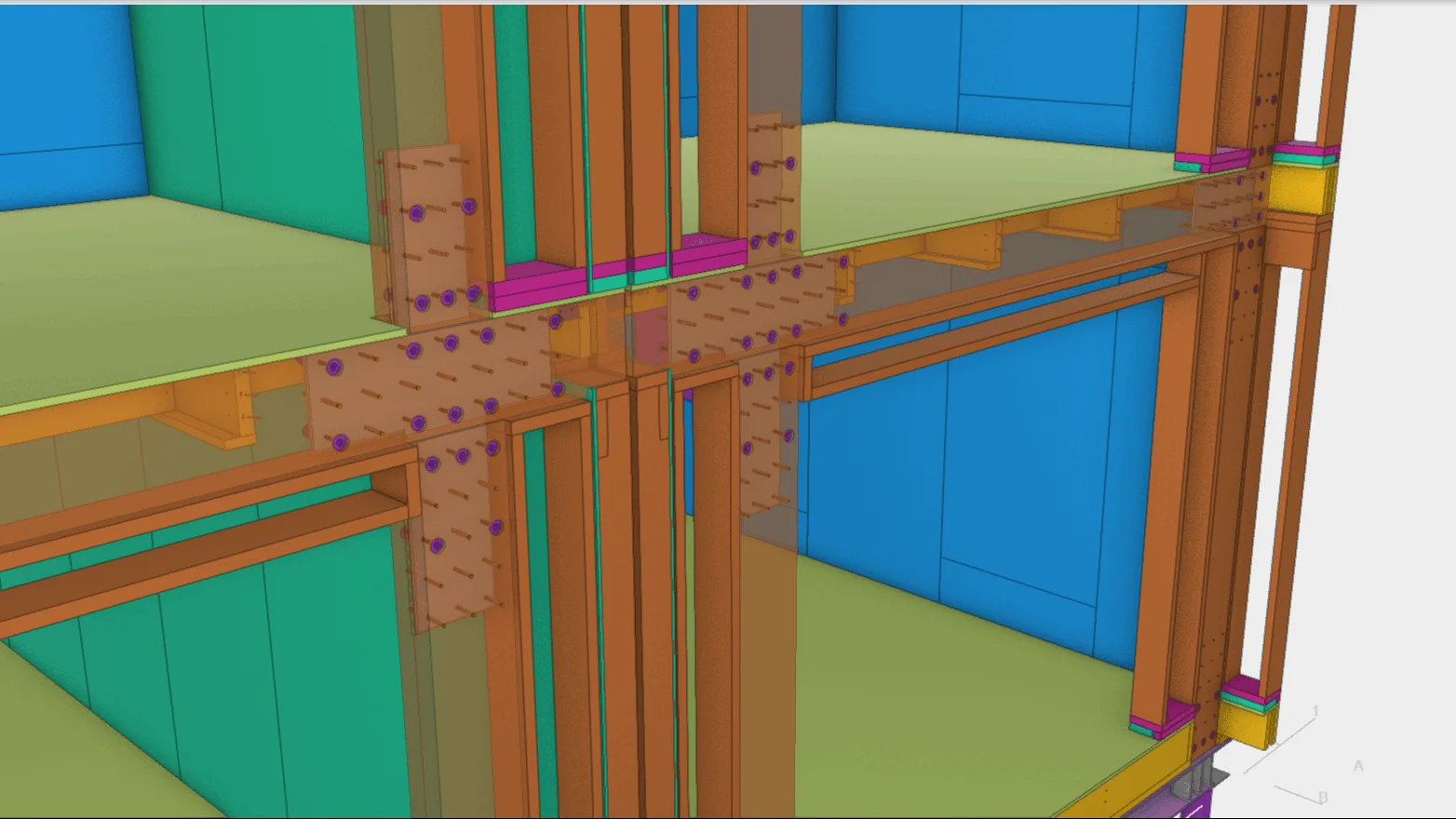

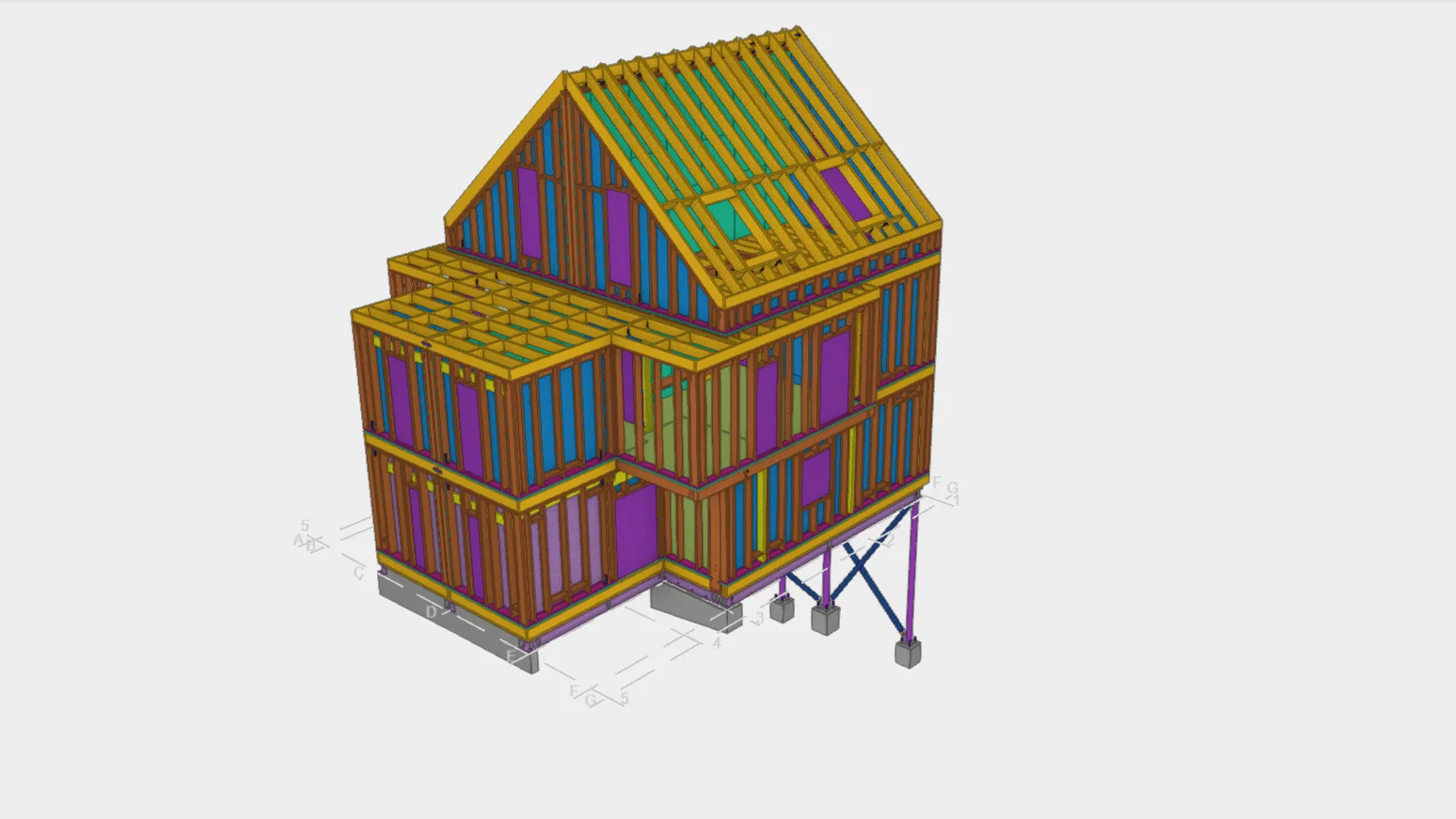

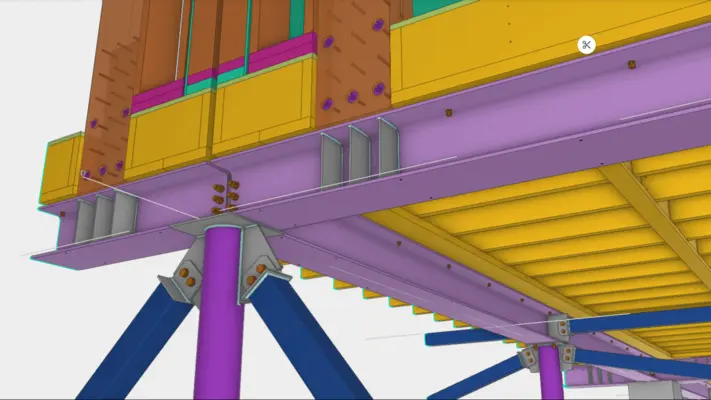

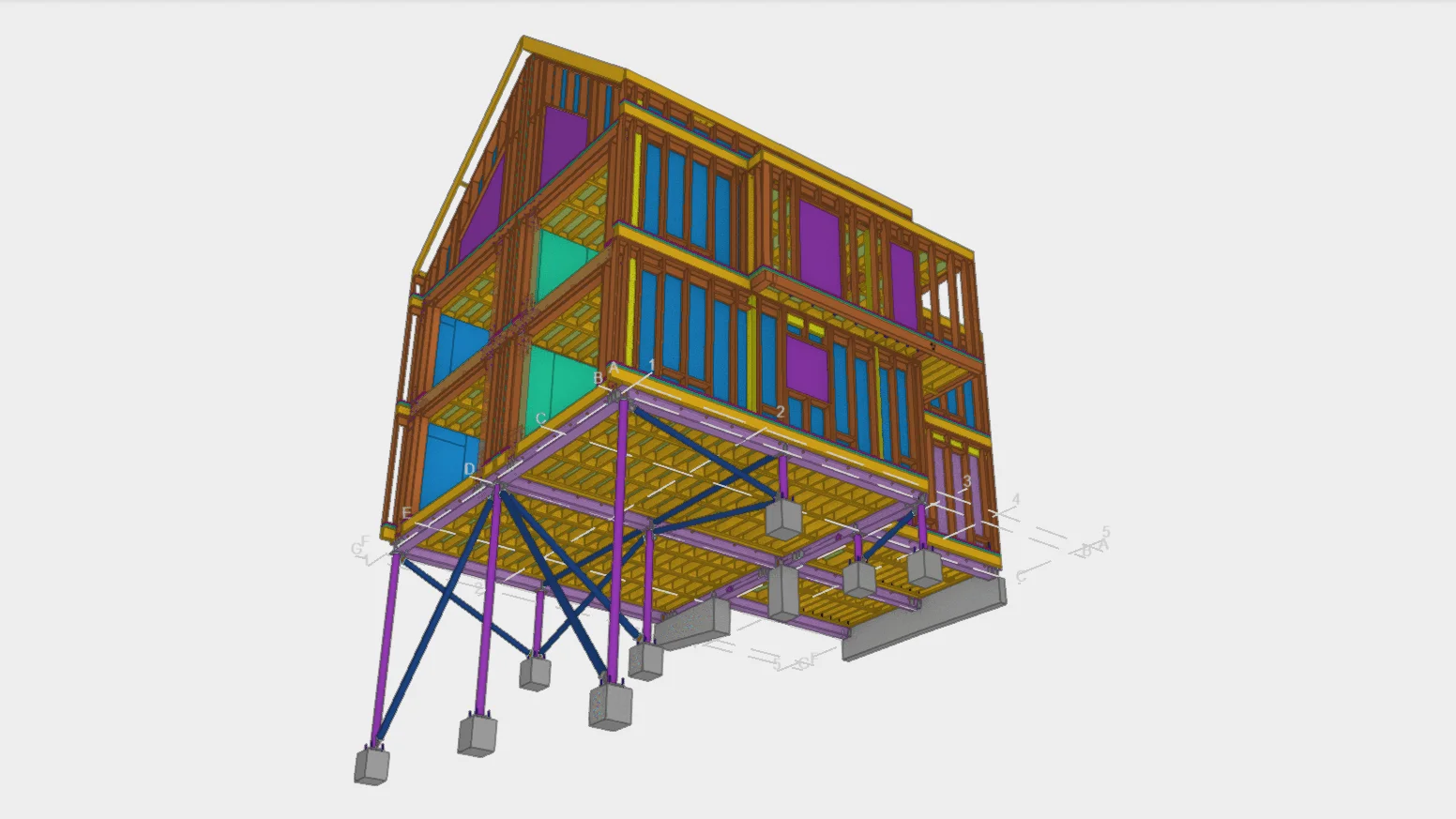

Development of the structural BIM model
Structural calculations, including stiffness of the house and structural connections calculations
Plan of Loads
Glulam and Steel Frame Assembly Drawings
General arrangement drawings
Structural Overview
Load-bearing exterior and interior timber-frame walls
Roof structure: gang-nailed plate rafters
The building's stiffness was ensured by transferring roof and ceiling diaphragms loads to the walls, which acted as shear walls through the action of the structural sheathing.
Glulam stiffening frames with concealed steel plates, joined with dowels and bolts, were installed in the panoramic window area.
Modeling, Calculation & Coordination Tools š
Modeling: Tekla Structures
Calculations: Excel spreadsheets, REM 6, and Finnwood
