This is a two-storey private house with a garage, located in Stockholm, Sweden. This classic Swedish-style home is situated on a hillside with large panoramic windows overlooking the sea bay and mountains. The main architectural concept was the use of massive glued laminated beams in the floor structures to give a sense of solidity and reliability.
Main Part Design OÜ was responsible for:
Development of the structural BIM model, including electrical sockets and conduits
Structural calculations, including overall building stiffness and structural connection analysis
Production drawings, including part and assembly drawings
Production specifications and shipping lists
General arrangement drawings
Structural Overview
Load-bearing exterior and interior timber-frame walls
Roof structure: gang-nailed plate rafters
The building’s stiffness was ensured by transferring roof and ceiling diaphragms loads to the walls, which acted as shear walls through the action of the structural sheathing
Wall diaphragms are anchored using the Rothoblaas system hold-downs and chemical anchors
Modeling, Calculation & Coordination Tools 📐

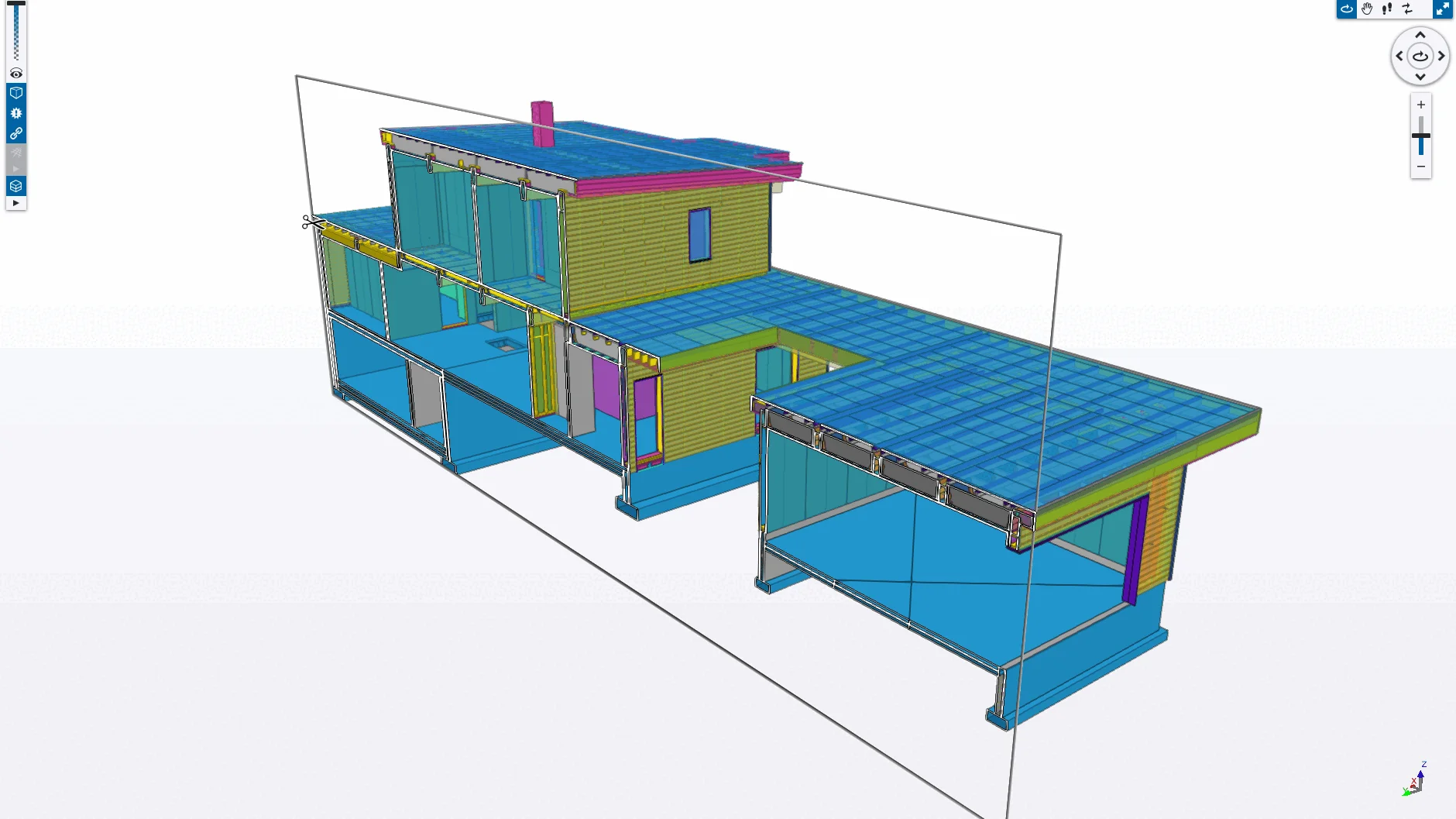

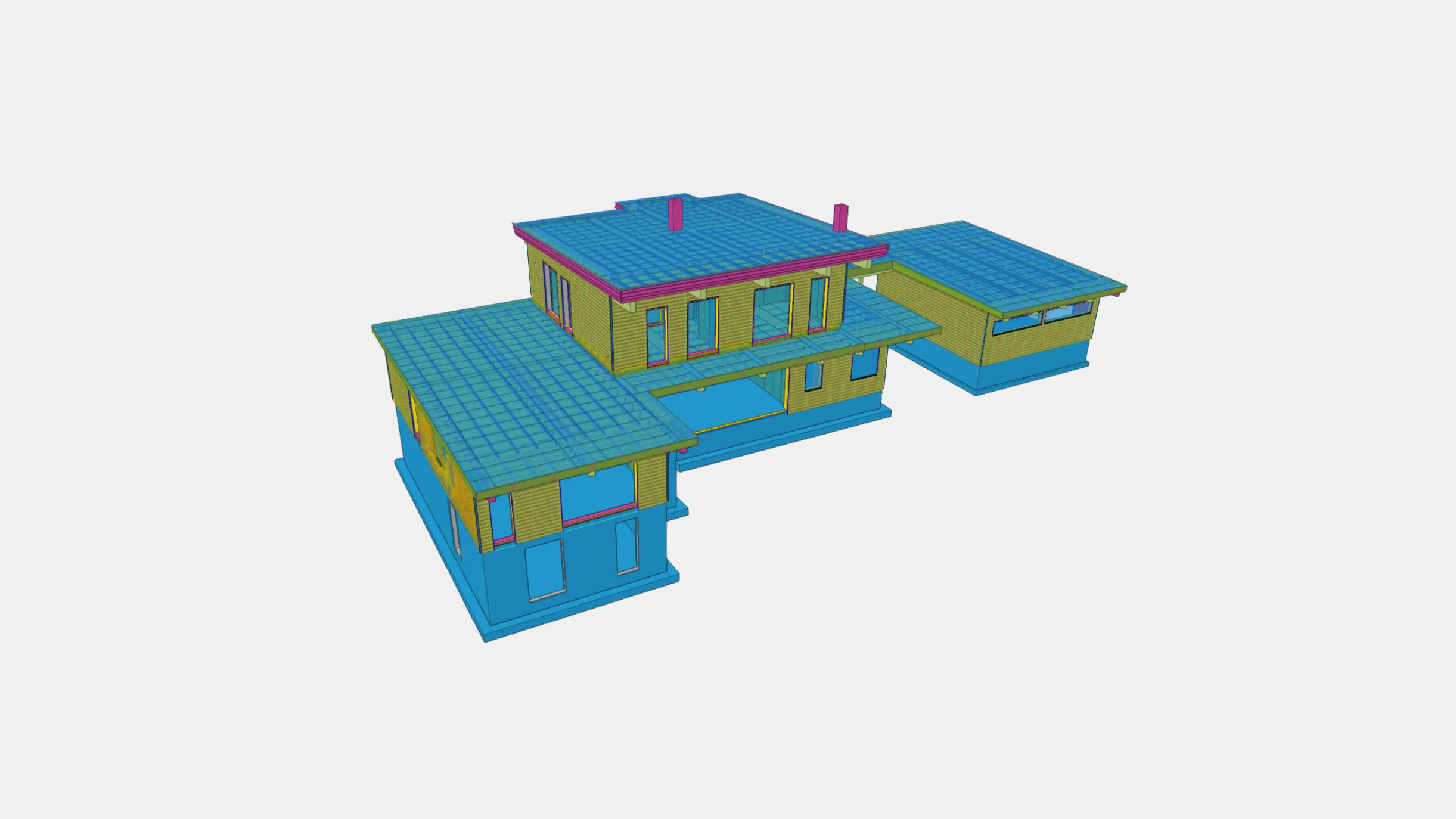

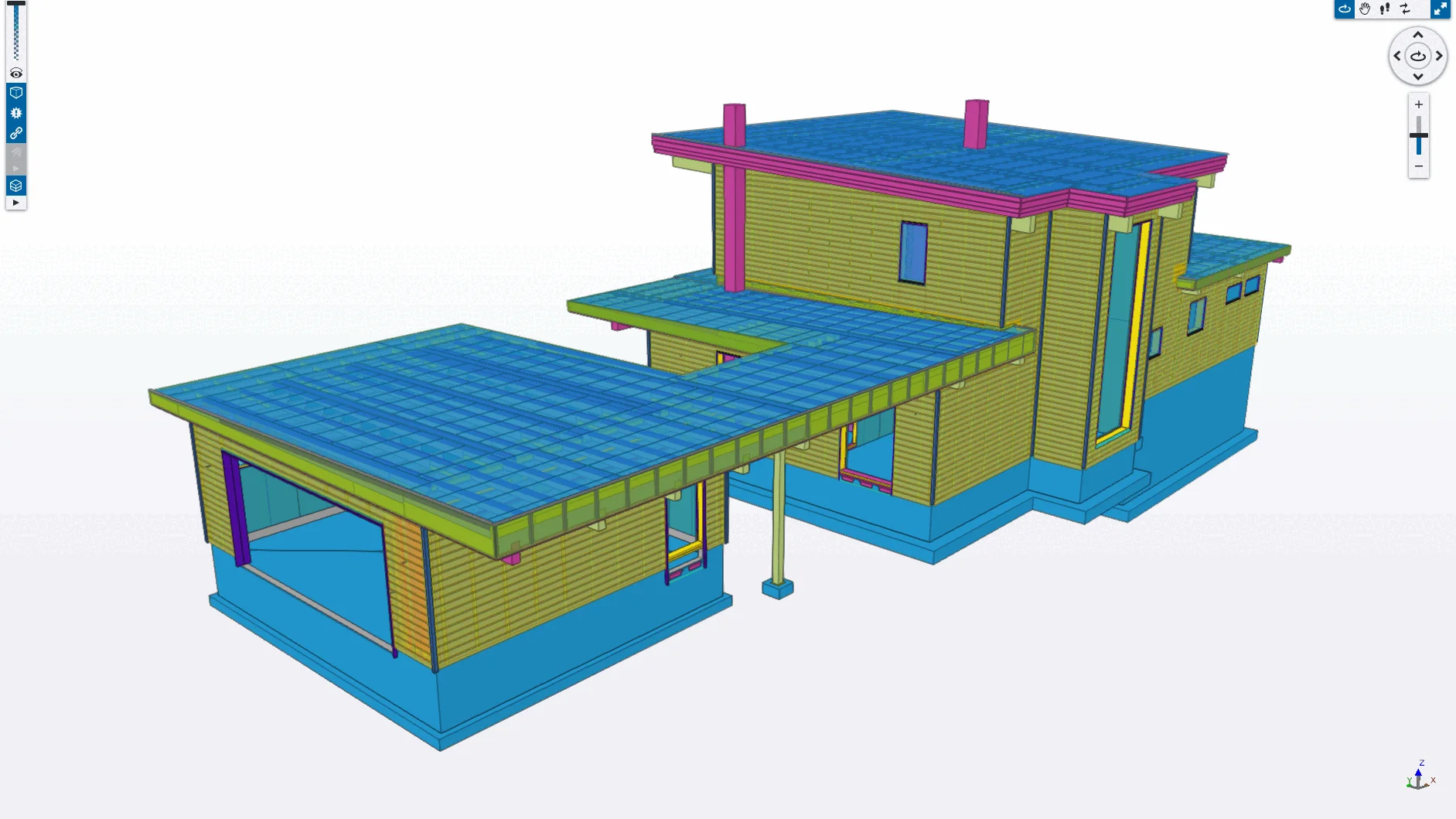

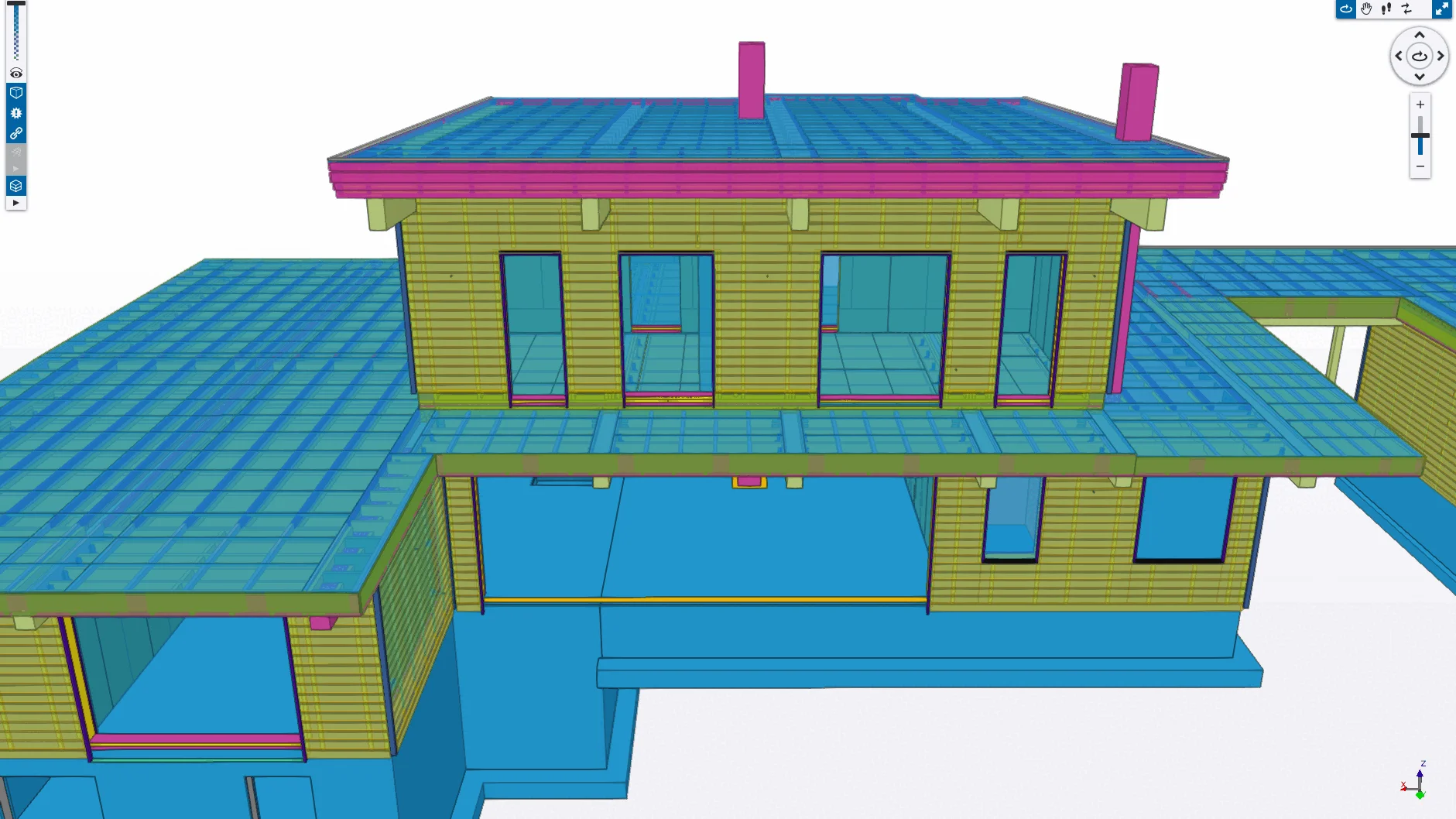

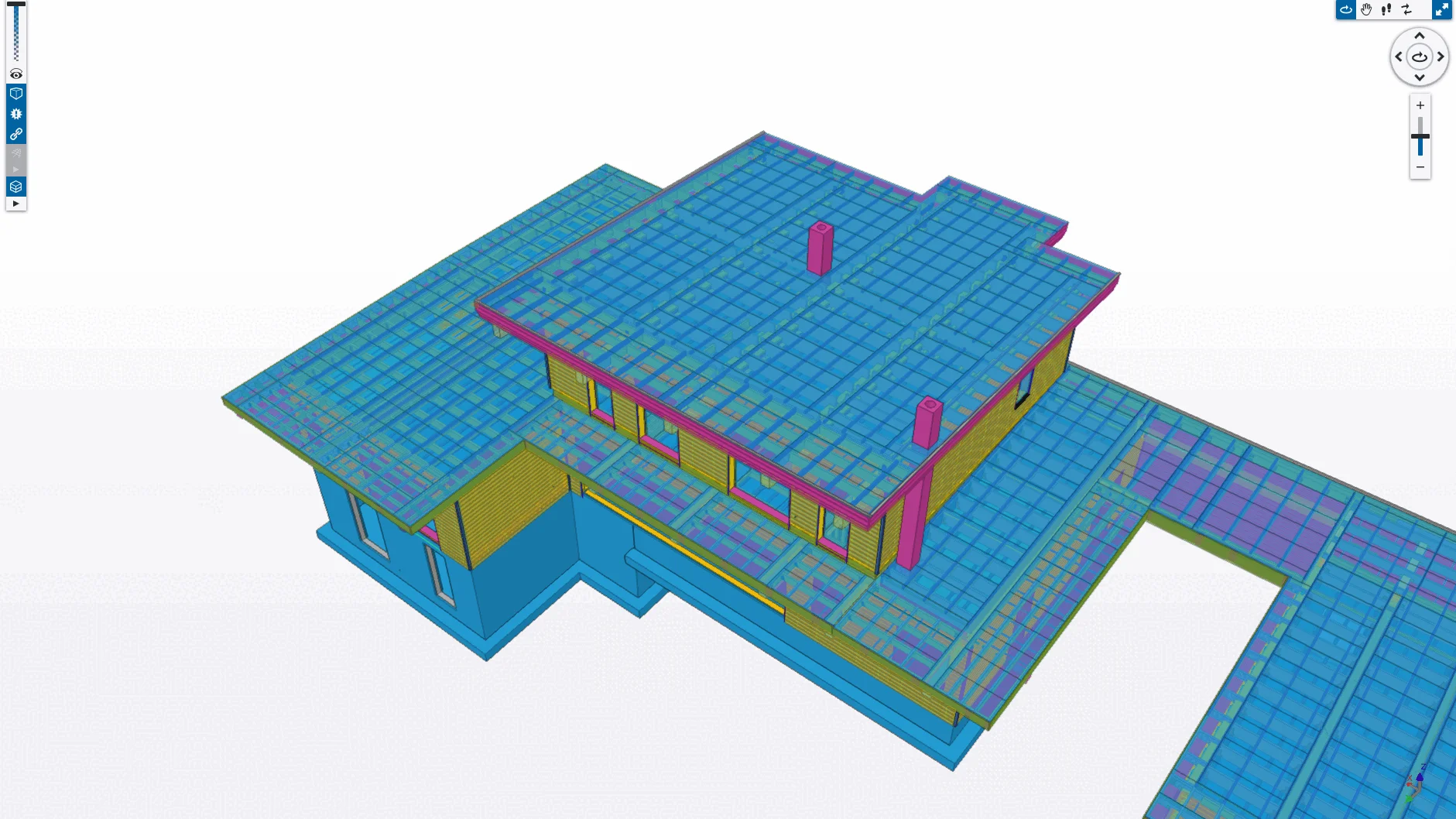

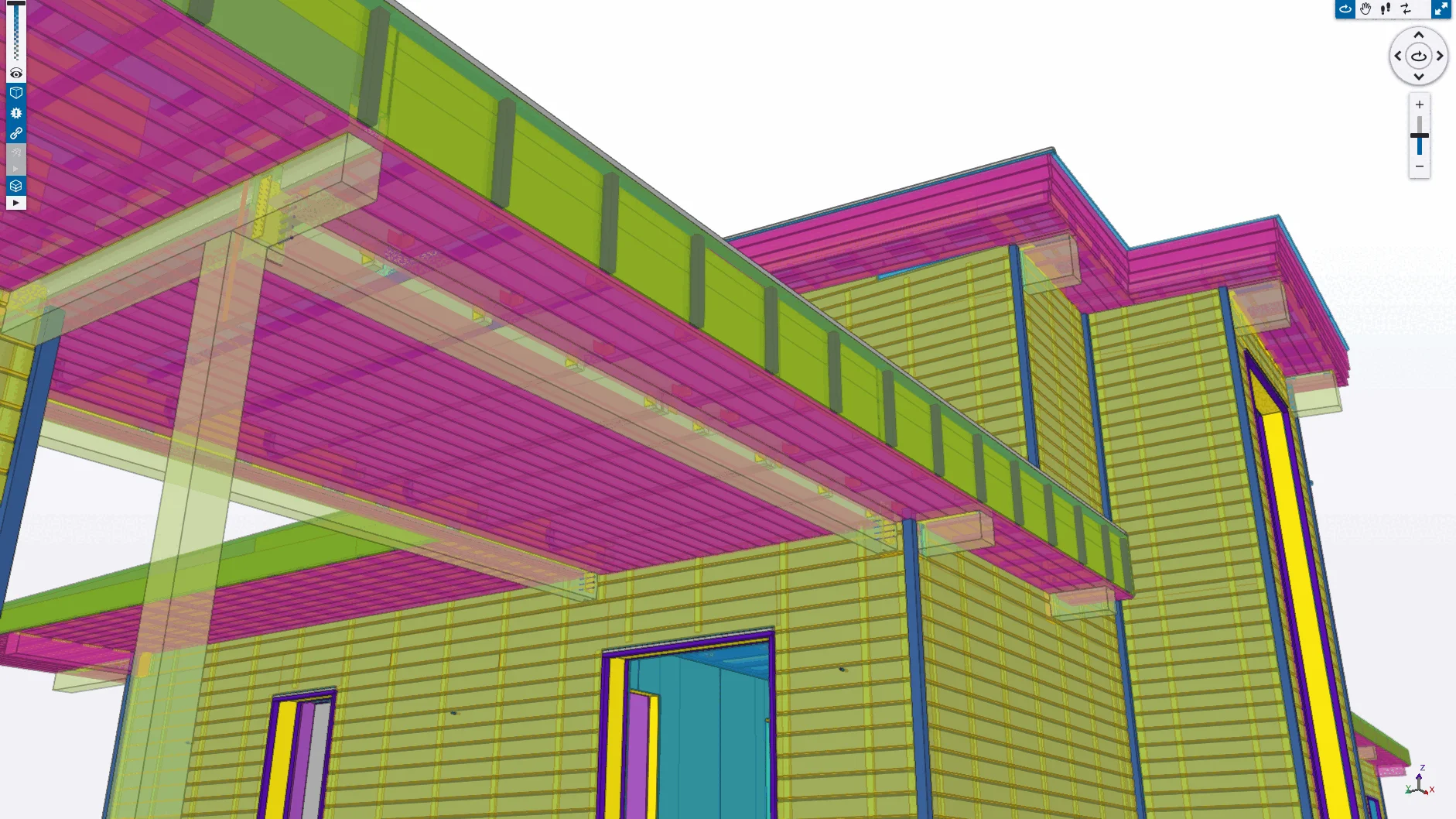

Modeling: Tekla Structures
Calculations: Excel spreadsheets, Tekla Tedds, and Finnwood
