Alstahaug

Location: Alstahaug, Norway

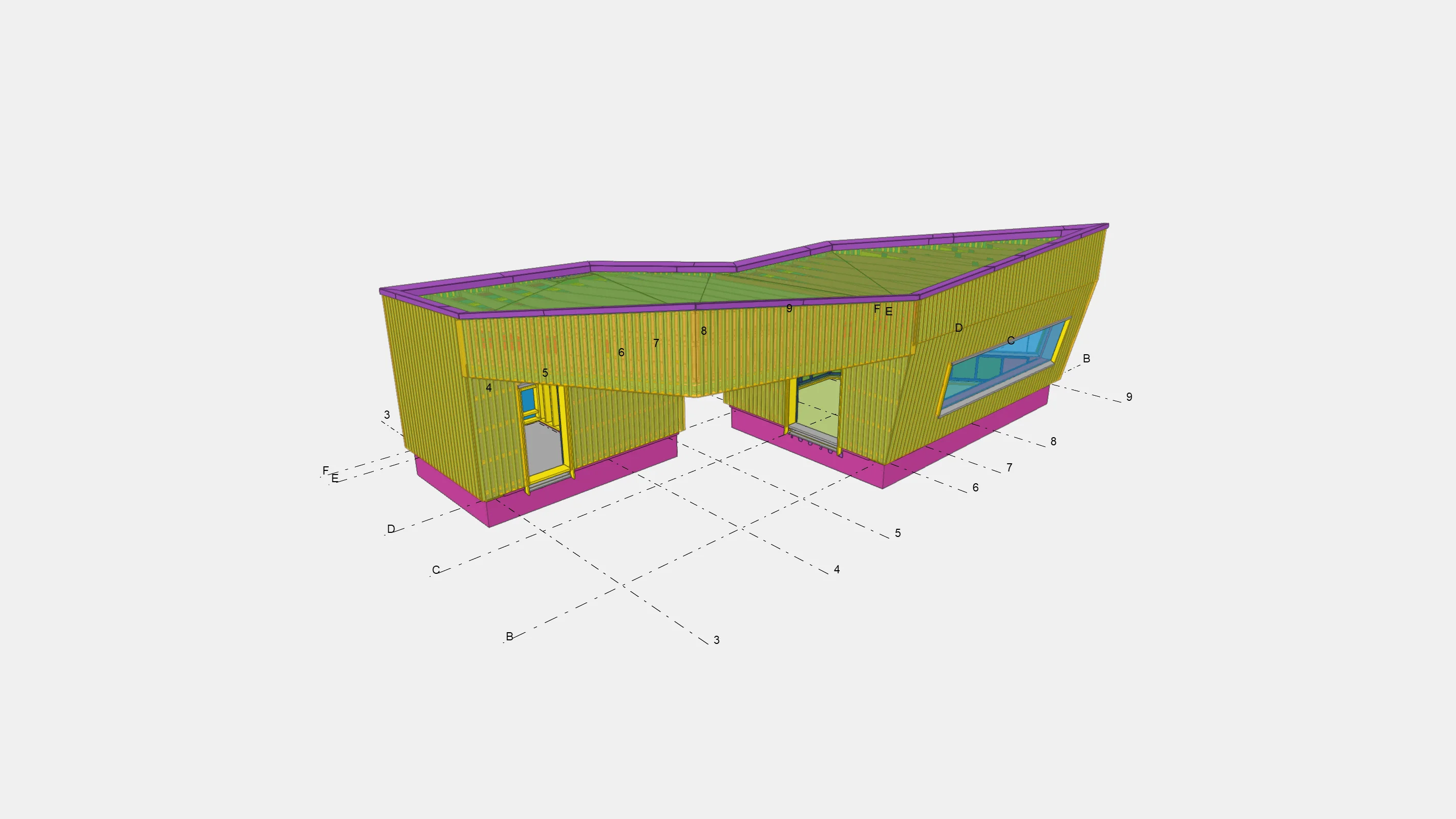

This is a very small but unique project with complex geometry and structural solutions — a waiting pavilion in Alstahaug Harbor.

Main Part Design OÜ was responsible for:

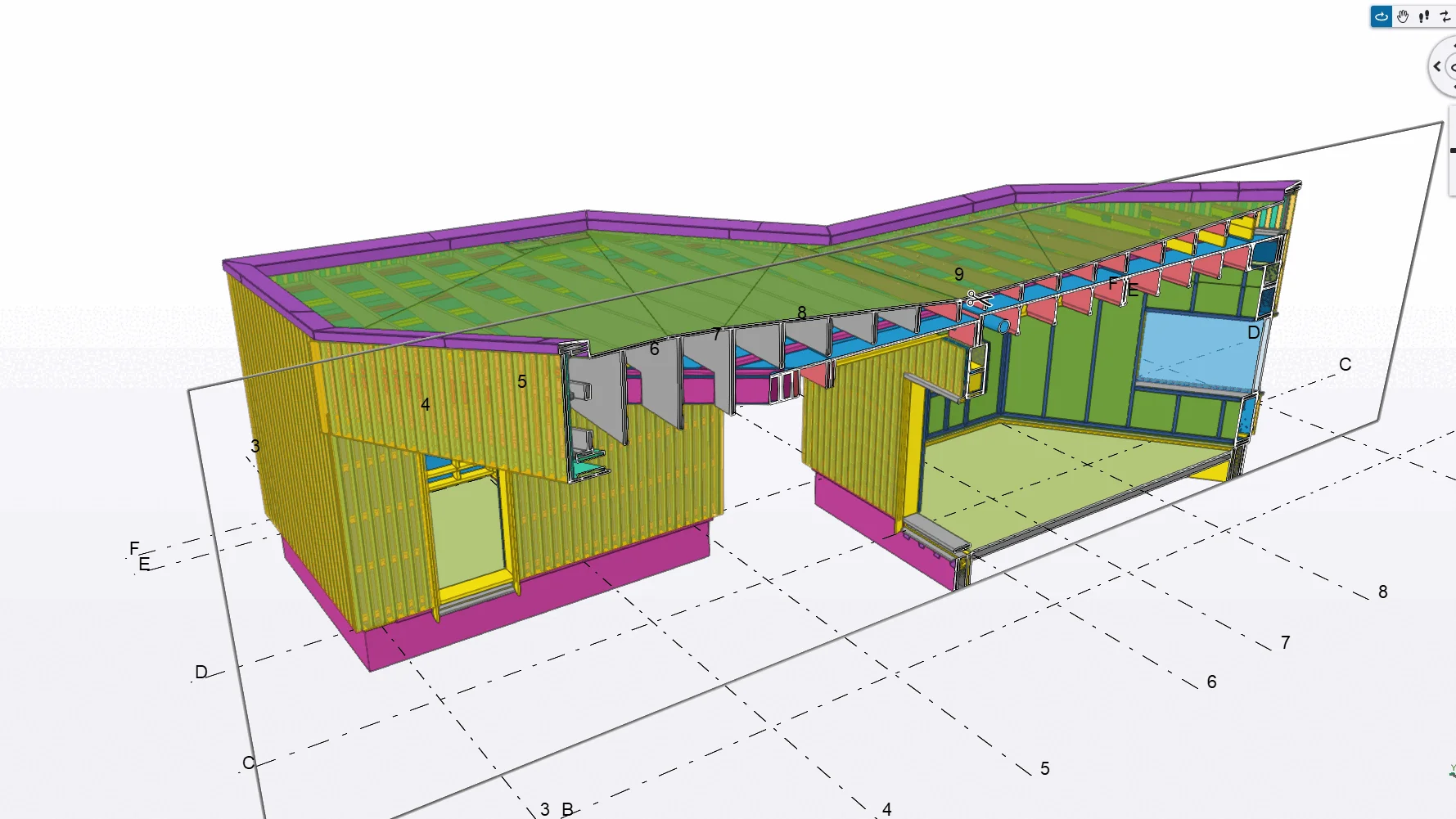

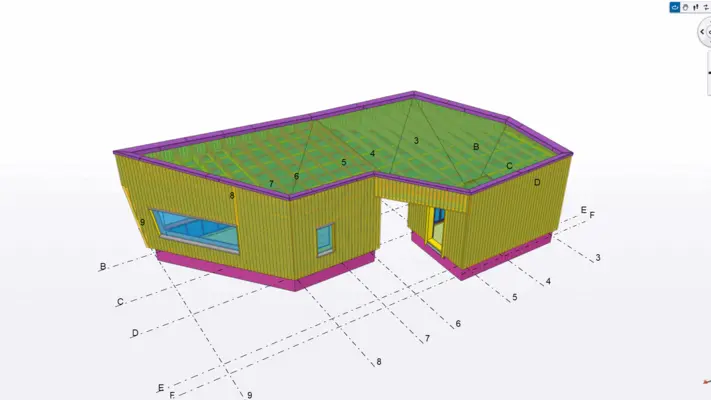

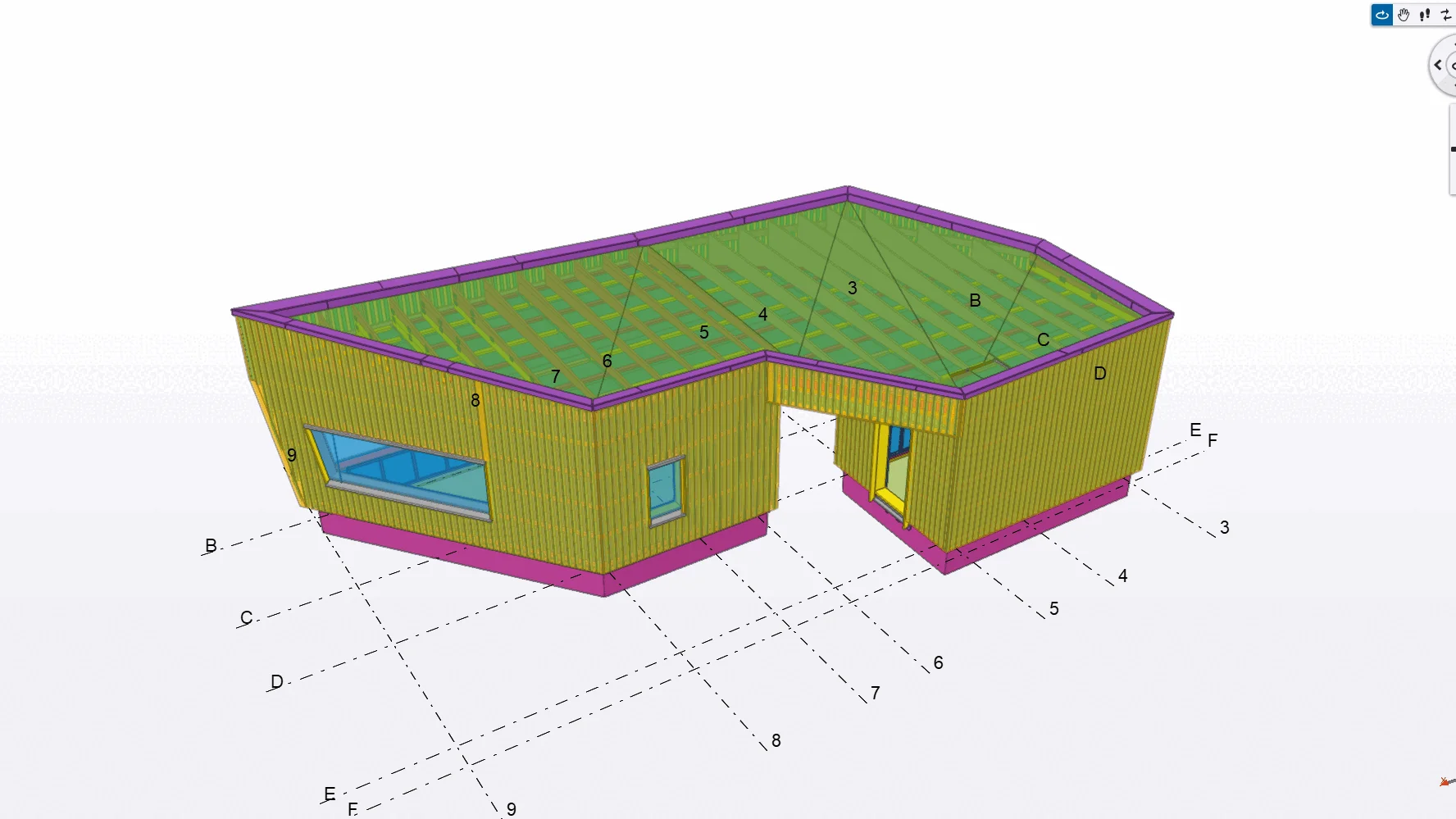

• Development of the structural BIM model
• Structural calculations, including stiffness of the house and structural connection calculations
• Production drawings, including part and assembly drawings
• Production specifications and shipping lists
• General arrangement drawings

Structural Overview

• Load-bearing exterior and interior timber-frame walls

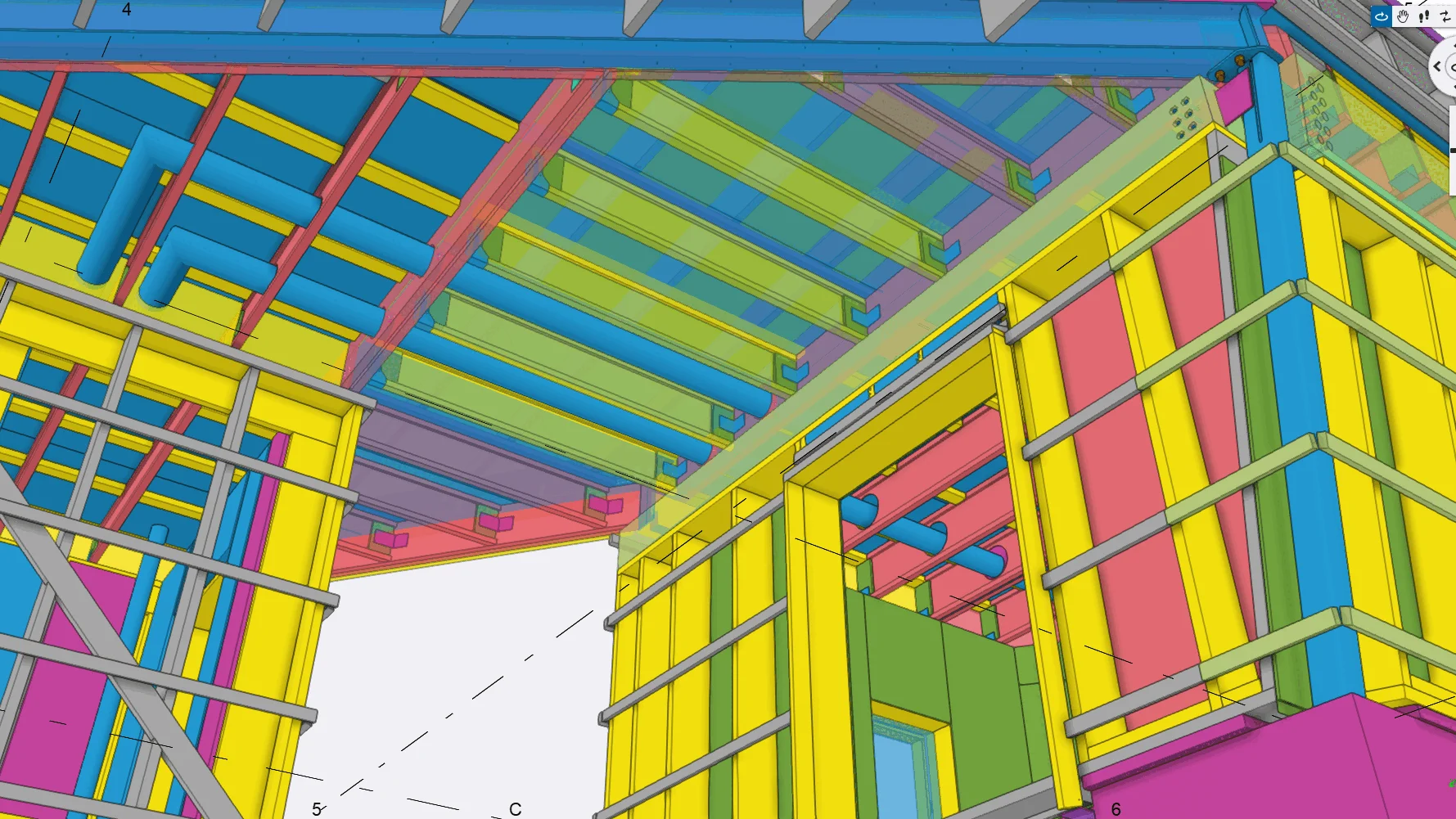

• Roof structure: roof element made from timber I-beams to allow installation of ventilation pipes inside the roof core

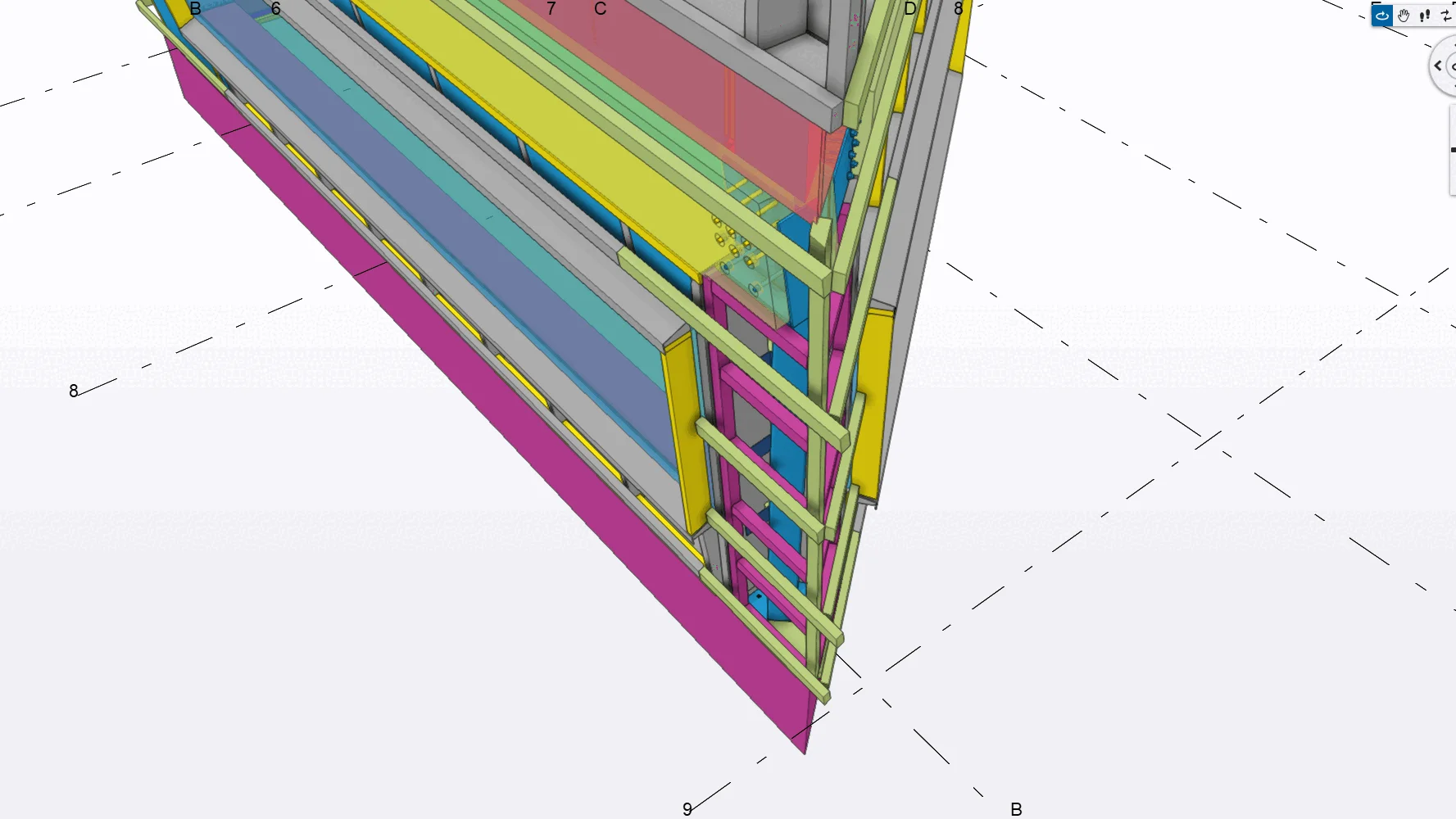

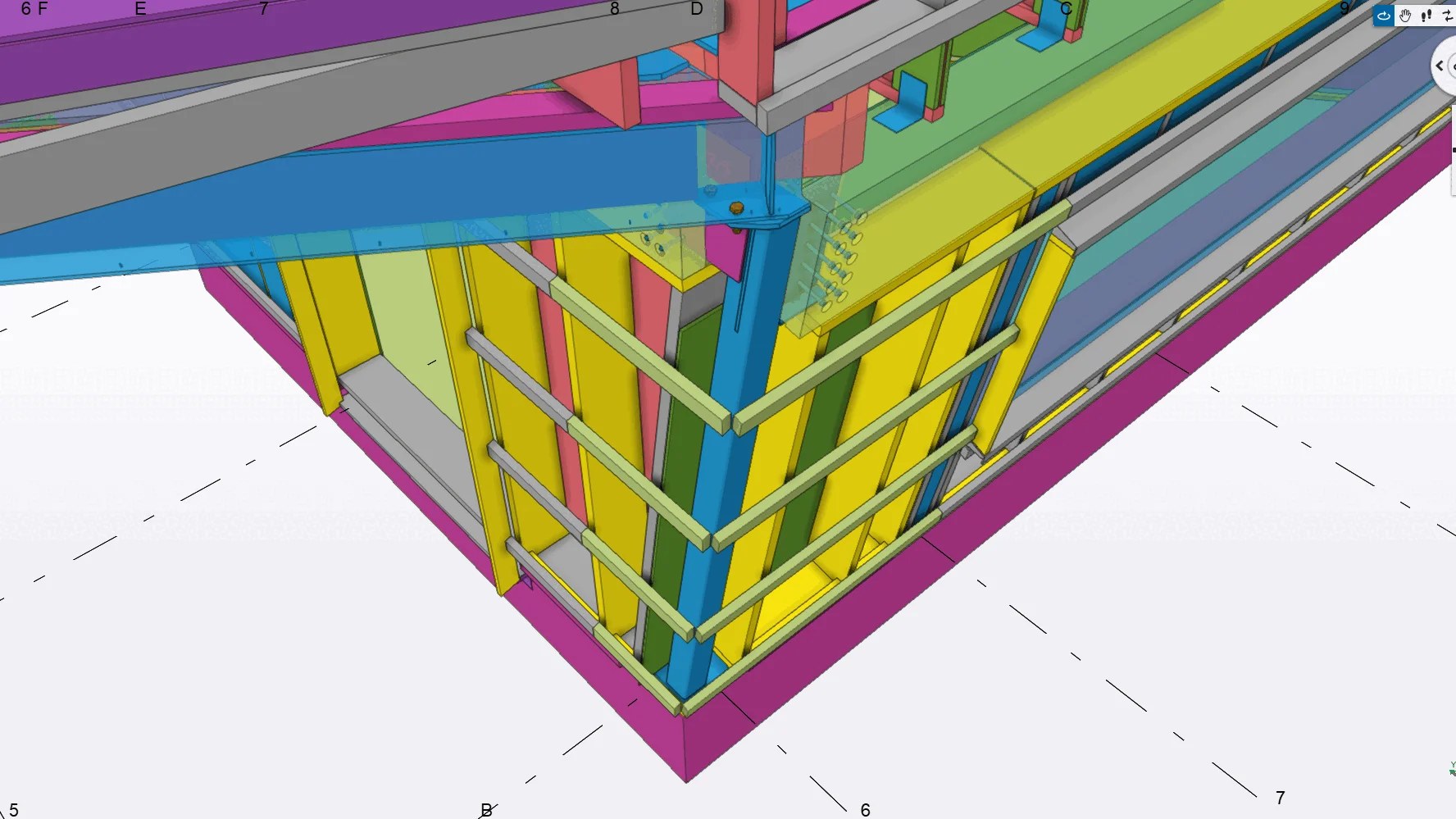

• Several complex steel connections, supporting columns, and steel beams integrated within the external walls and roof

Modeling, Calculation & Coordination Tools 📐

• Modeling: Tekla Structures
• Calculations: Excel spreadsheets, Tekla Tedds, and Finnwood
• Coordination: Trimble Connect
